Device calibrations and connectivity

Superconducting QPUs are not uniform: qubits differ in readout fidelity, and two-qubit gates only exist between physically coupled pairs, each with its own error rate. The QbraidProvider exposes both facts programmatically, so you can inspect a device before you submit to it, and place your circuit on the qubits where it will perform best.

Do you need this?

No. Calibration-aware qubit selection is an optimization, not a prerequisite — you can submit jobs without ever calling get_calibrations(). When you submit a circuit, the provider’s compiler already chooses a physical layout for you, using these same calibration tables to avoid the worst qubits.

Reach for this page when you hit a question the default path does not answer:

• “Why did my results change since last week?” Devices drift and are recalibrated continuously, so comparing snapshots often explains it.
• “Which device should I run on?” Qubit count alone says little; error rates and coherence times say more.
• “Can I beat the default layout?” For deep circuits, pinning a high-fidelity qubit chain can outperform automatic placement.
• Noise characterization and benchmarking, where the calibration data is itself the object of study.

Fetching calibration data

Every QbraidDevice has two entry points:

from qbraid.runtime import QbraidProvider

provider = QbraidProvider()
device = provider.get_device("rigetti:rigetti:qpu:cepheus-1-108q")

device.coupling_map
# ((0, 1), (0, 9), (1, 2), (1, 10), (2, 3), ...)  193 physical qubit pairs

calibration = device.get_calibrations()
calibration.last_calibrated
# '2026-07-21T20:05:45+00:00'

coupling_map is the device’s physical connectivity: sorted, deduplicated (source, target) qubit pairs, derived from the calibrated two-qubit gate edges. It is cached on the device instance, since hardware topology does not change between calibrations.

get_calibrations() returns the full live snapshot and always fetches fresh data. The two most useful fields:

# Per-edge two-qubit gate error, keyed by gate name
calibration.edges["gateError"]["cz"][0]
# EdgeEntry(source=0, target=1, value=0.0246)

# Per-qubit metrics
calibration.qubits["0"]
# QubitCalibration(readout_error=0.04, gate_error={'rb': 0.0019}, ...)

Both return None for devices without published calibration data, such as simulators.

Devices with calibration data

You can also query the underlying REST endpoint directly, which works for any device ID including those not available for direct submission:

curl -H "X-API-Key: $QBRAID_API_KEY" \
  https://api.qbraid.com/api/v1/devices/rigetti:rigetti:qpu:cepheus-1-108q/calibrations

Plotting the connectivity graph

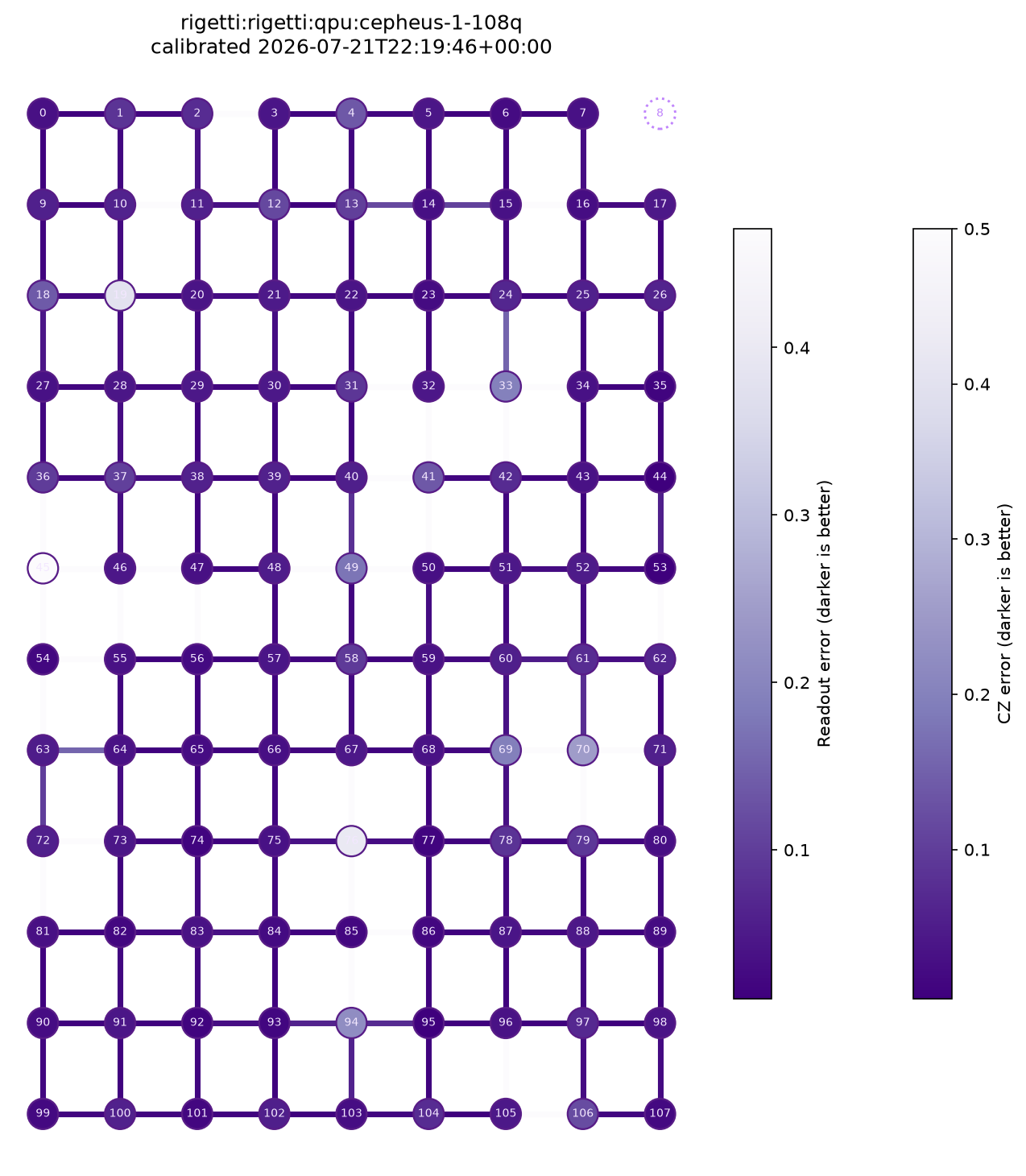

The qbraid.visualization module renders the graph in one call, colored by live calibration data. Edges are colored by two-qubit gate error and nodes by readout error, on a single-hue scale where darker is better, matching the topology view in qBraid Lab:

from qbraid.visualization import plot_connectivity_graph

plot_connectivity_graph(device)

The dotted outline is a qubit in the lattice footprint with no working couplings. Light qubits and edges are the ones to avoid.

The layout comes from the device document’s topology config, so square lattices (Rigetti) and clipped lattices (IQM) both render their true physical geometry; devices without a lattice config fall back to a force-directed layout. To build a custom plot, the lattice_positions helper maps qubit ids to grid coordinates from the same config:

from qbraid.visualization import lattice_positions

topology = device.client.get_device(device.id).topology
# {'type': 'square-lattice', 'rows': 12, 'cols': 9}

positions = lattice_positions(topology, range(108))
# {0: (0, 0), 1: (1, 0), ..., 107: (8, -11)}

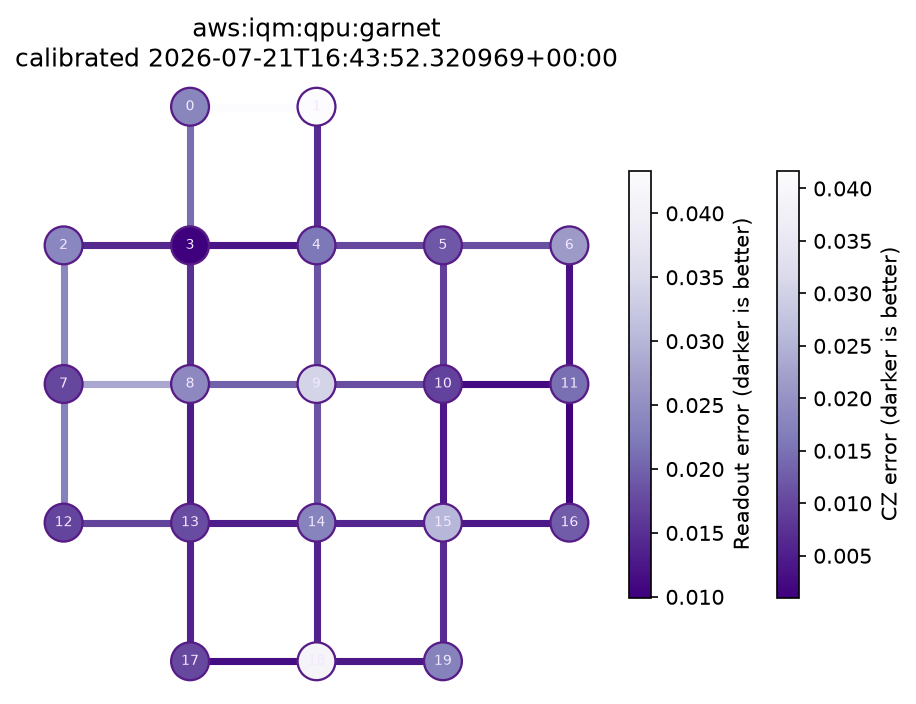

The same call works unchanged on any device with calibration data. IQM’s Garnet renders its clipped diamond lattice:

garnet = provider.get_device("aws:iqm:qpu:garnet")
plot_connectivity_graph(garnet)

Choosing the best qubits

With the calibration data in hand, qubit selection becomes a graph problem. Build a weighted graph from the coupling map, then the single best-calibrated pair is one line:

import networkx as nx

calibration = device.get_calibrations()
edge_error = {
    (e.source, e.target): e.value
    for e in calibration.edges["gateError"]["cz"]
}

graph = nx.Graph()
for q0, q1 in device.coupling_map:
    graph.add_edge(q0, q1, error=edge_error.get((q0, q1), edge_error.get((q1, q0))))

best_edge = min(edge_error, key=edge_error.get)
# (88, 89), CZ error 0.0037 -- 2.3x better than the device median

For a linear circuit on n qubits, search for the connected chain that minimizes the summed two-qubit error:

def best_chain(graph, length):
    """Find the simple path of `length` qubits minimizing summed edge error."""
    best = (float("inf"), None)

    def extend(path, total):
        nonlocal best
        if total >= best[0]:
            return
        if len(path) == length:
            best = (total, list(path))
            return
        for nbr in graph.neighbors(path[-1]):
            if nbr not in path:
                path.append(nbr)
                extend(path, total + graph.edges[path[-2], nbr]["error"])
                path.pop()

    for start in graph.nodes:
        extend([start], 0.0)
    return best

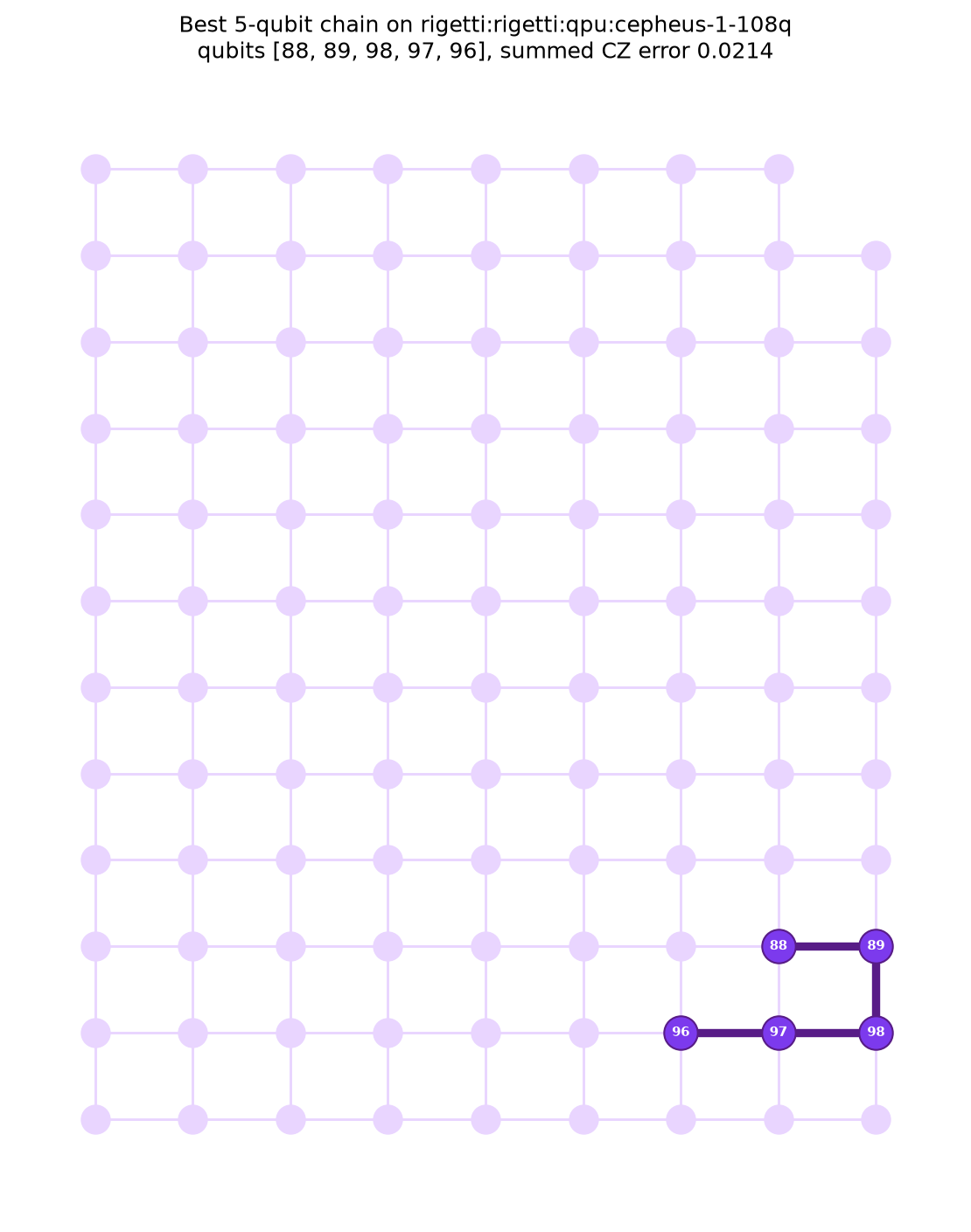

total, chain = best_chain(graph, 5)
# chain = [88, 89, 98, 97, 96], summed CZ error 0.0214

Running on the qubits you chose

Rigetti direct: hand-placed native gates

On the Rigetti direct path, programs that bypass quilc must already use native gates on physical qubits, which is exactly what the coupling map enables. A Bell pair on the best-calibrated edge:

import pyquil

q0, q1 = best_edge  # (88, 89)

program = pyquil.Program(f"""
DECLARE ro BIT[2]
RX(pi/2) {q0}
RX(pi/2) {q1}
CZ {q0} {q1}
RX(-pi/2) {q1}
MEASURE {q0} ro[0]
MEASURE {q1} ro[1]
""")

job = device.run(program, shots=100)
job.wait_for_final_state()
job.result().data.get_counts()
# {'00': 44, '11': 44, '01': 7, '10': 5}  -- run on Cepheus-1-108Q, 2026-07-21

The correlated outcomes (00 and 11) came back at 88 percent on hardware, consistent with the roughly 0.4 percent CZ error and few-percent readout error of the chosen pair.

Qiskit: constrain transpilation to the real topology

If you would rather let a transpiler do the routing, feed the coupling map to Qiskit and pin your circuit to the chain you selected. This works for any gate-model device on qBraid:

from qiskit import QuantumCircuit, transpile
from qiskit.transpiler import CouplingMap

ghz = QuantumCircuit(5, 5)
ghz.h(0)
for i in range(4):
    ghz.cx(i, i + 1)
ghz.measure(range(5), range(5))

coupling = CouplingMap(
    [list(edge) for edge in garnet.coupling_map]
    + [[b, a] for a, b in garnet.coupling_map]
)
total, chain = best_chain(garnet_graph, 5)  # [6, 11, 16, 15, 10] on Garnet

transpiled = transpile(
    ghz,
    coupling_map=coupling,
    initial_layout=chain,
    basis_gates=["r", "cz"],
    optimization_level=3,
)

job = garnet.run(transpiled, shots=1000)

Every two-qubit gate in the transpiled circuit now acts on a physically coupled, well-calibrated pair, and no SWAP overhead is silently inserted for qubits you did not choose.
